100L Automatic Vaccine Bioreactor

LBR-100V

Vaccine culture fermenters are commonly used for vaccine culture and production on an industrial scale. Tianhui Company can provide engineering general contract including design, manufacturing, installation, commissioning, personnel training, process system, etc.; and can be combined with cultivated products to assist users in GMP and other qualification demonstrations. Special specifications can be customized, and special requirements can be specially designed.

Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

LBR-XV series fermenter is our company's unique equipment for bacterial vaccine culture: fully sealed, zero leakage, pollution-free and maintenance-free. The double-end mechanical seal completely solves the problem of bacterial contamination in biological product tanks. Various parameters in fermentation such as pH, DO, temperature and rotational speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated on the fermentation system. You can choose to use the direct coupling mechanical stirring method driven by the upper part or the indirect coupling mechanical stirring method of the lower driving magnetic force. The structure is simple and the operation is stable.



SPECIFICATIONS

Stirring speed: using special motor for fermentation tank, speed: 50~1000rpm stepless speed change; accuracy: ±1rpm;

PH control: intelligent PID control, automatic acid/alkali supplementation; range: 2~12ph; control accuracy: ±0.02ph;

DO control: intelligent PID control, related to feeding, rotating speed, air flow, pressure; range: 0~100%, control accuracy: ±3%;

Temperature control: intelligent PID control; electric heating water cooling; range: cooling water temperature +5~80℃; accuracy: ±0.1℃;

Foam control: peristaltic pump supplements defoamer, automatic control;

Ventilation: automatic adjustment, digital display;

Tank pressure: automatic adjustment, digital display;

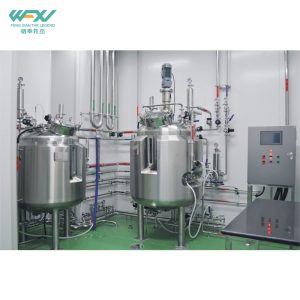

PROJECT CASE

bioreactor fermenter project case
