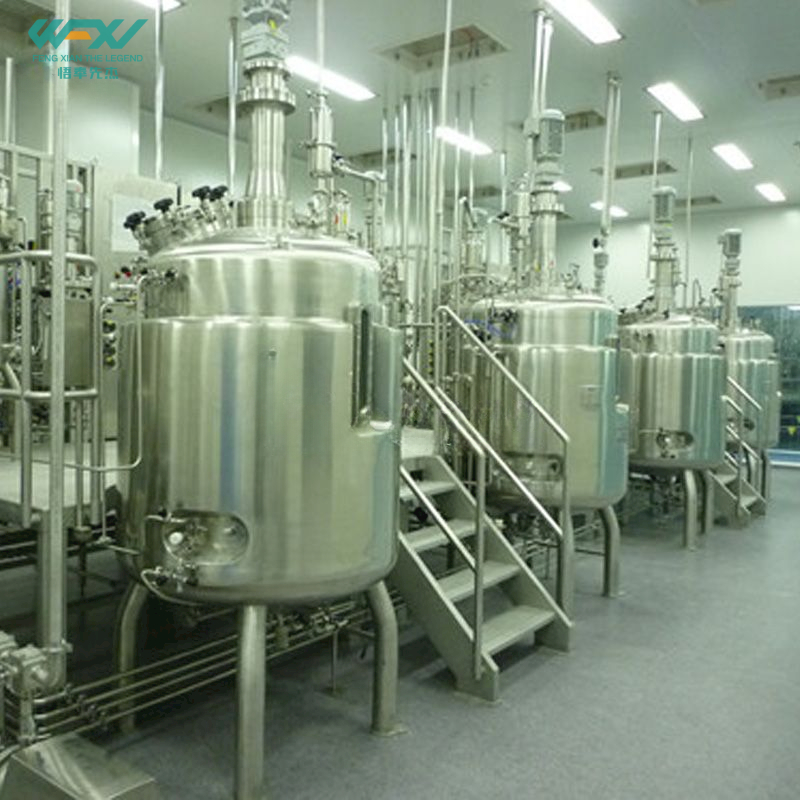

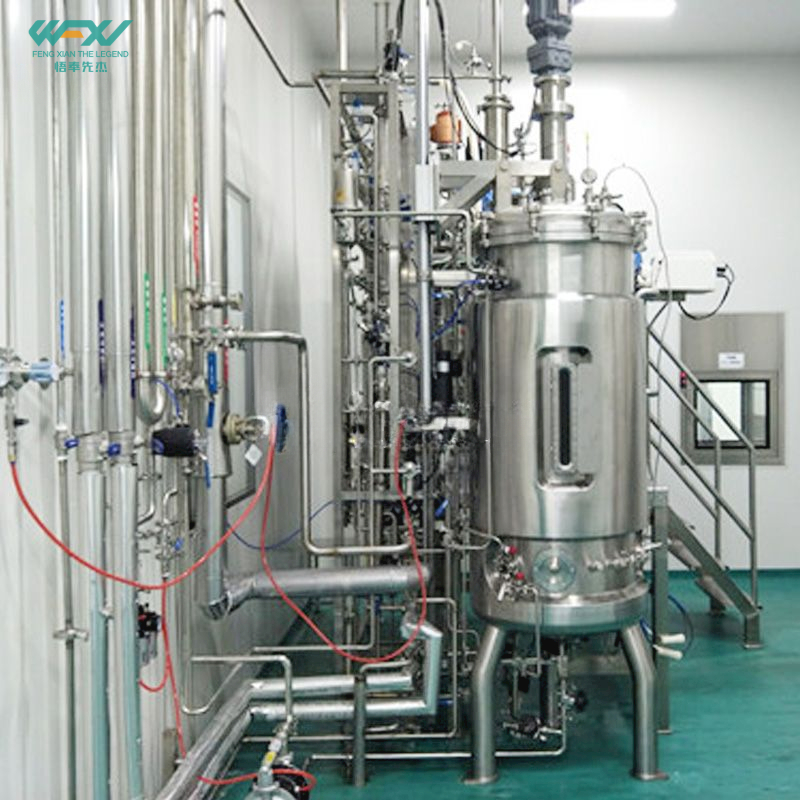

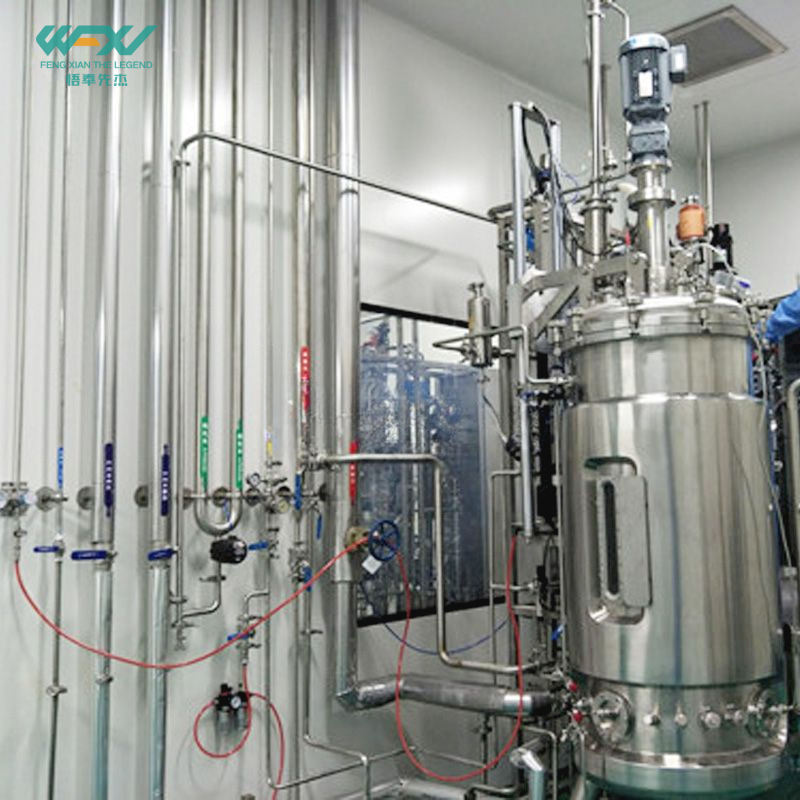

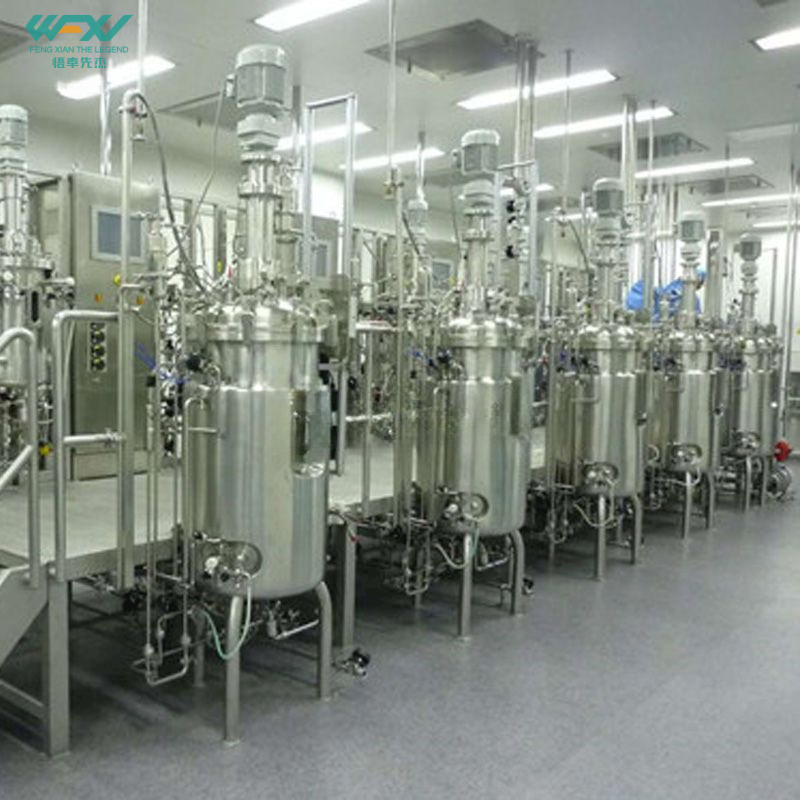

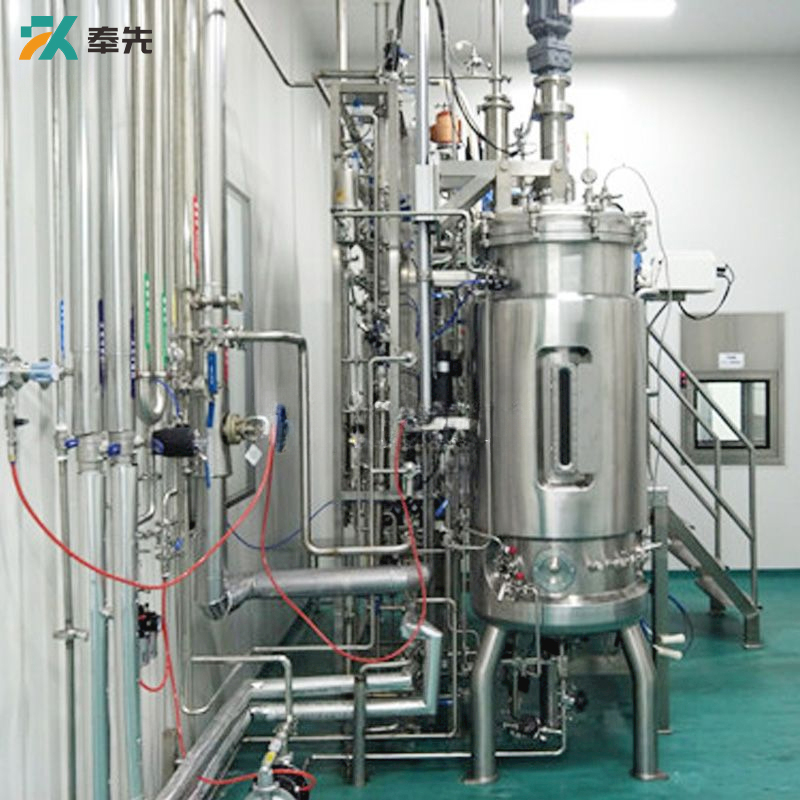

The LBR-XV-GMP series fermentation tank is a bacterial culture equipment that fully meets the requirements of GMP. It completely solves the problem of bacterial contamination in biological product tanks. Various parameters in fermentation such as pH, DO, temperature and rotational speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated on the fermentation system. You can choose to use the direct coupling mechanical stirring method driven by the upper part or the indirect coupling mechanical stirring method of the lower driving magnetic force. The structure is simple and the operation is stable.
Diameter to height ratio: 1:1~2.5; Liquid loading coefficient: 70%
Tank body: 316L stainless steel, easy to clean; stainless steel inner polishing accuracy Ra≤0.4;
Tank function: intake sterilization filter, exhaust condenser, including intake and exhaust treatment system, motor: sew AC motor for fermentation tank; double seal on upper shaft end or lower magnetic stirring to ensure zero leakage
Stirring speed: using special motor for fermentation tank, speed: 50~1000rpm stepless speed change; accuracy: ±1rpm;
PH control: intelligent PID control, automatic acid/alkali supplementation; range: 2~12ph; control accuracy: ±0.02ph,
DO control: intelligent PID control, related to feeding, rotating speed, air flow, pressure; range: 0~100%, control accuracy: ±3%;
Temperature control: intelligent PID control; electric heating water cooling; range: cooling water temperature +5~80℃; accuracy: ±0.1℃;
Foam control: peristaltic pump supplements defoamer, automatic control;
Ventilation: automatic adjustment, digital display;
Tank pressure: automatic adjustment, digital display;
