OVERVIEW

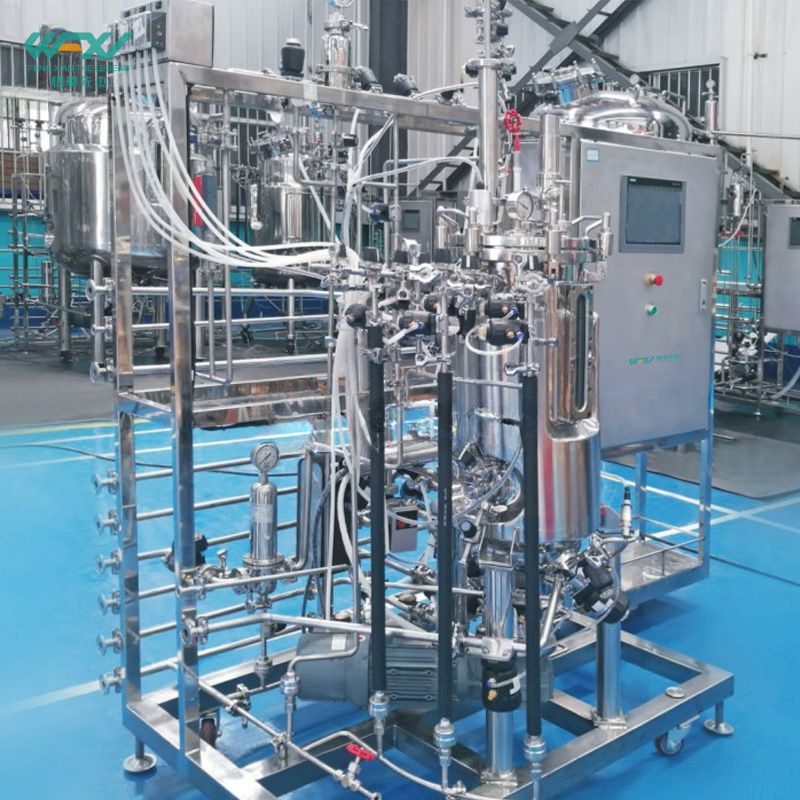

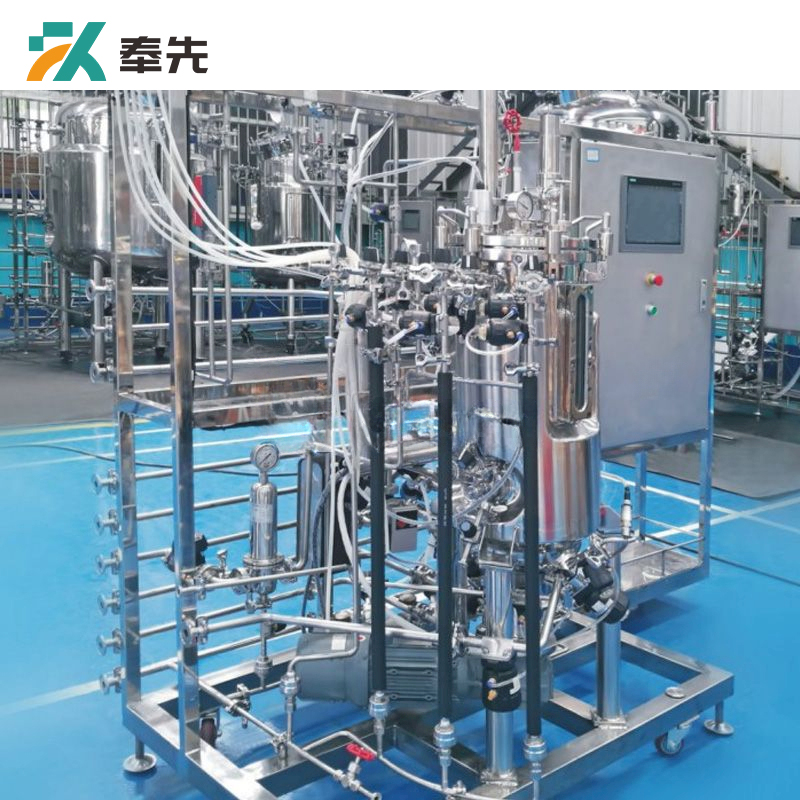

LBR-XV series fermenter is our company's unique equipment for bacterial vaccine culture: fully sealed, zero leakage, pollution-free and maintenance-free. The double-end mechanical seal completely solves the problem of bacterial contamination in biological product tanks. Various parameters in fermentation such as pH, DO, temperature and rotational speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated on the fermentation system. You can choose to use the direct coupling mechanical stirring method driven by the upper part or the indirect coupling mechanical stirring method of the lower driving magnetic force. The structure is simple and the operation is stable.
Diameter to height ratio: 1:1~2.5;
Filling coefficient: 70%;
Tank body: 316L stainless steel, easy to clean; stainless steel inner polishing accuracy Ra≤0.4;
Tank function: intake sterilization filter, exhaust condenser, including intake and exhaust treatment system, motor: sew AC motor for fermentation tank; double seal on the upper shaft end to ensure zero leakage;
Ventilation: Multi-channel ventilation, thermal mass flowmeter automatically controls air flow and oxygen flow
Pressure: Pressure control range: 0-0.3Mpa, pressure regulating valve adjusts the outlet pressure, digital remote display.
Stirring system: Stirring form: straight, oblique blade stirring paddle (multi-stage);
Fermentation pH control function: intelligent PID control, Mettler PH electrode;
Fermentation dissolved oxygen control function: intelligent PID control, METTLER DO electrode;
Temperature control: intelligent PID control, electric heating, water cooling, circulating pump cycle temperature control;
