OVERVIEW

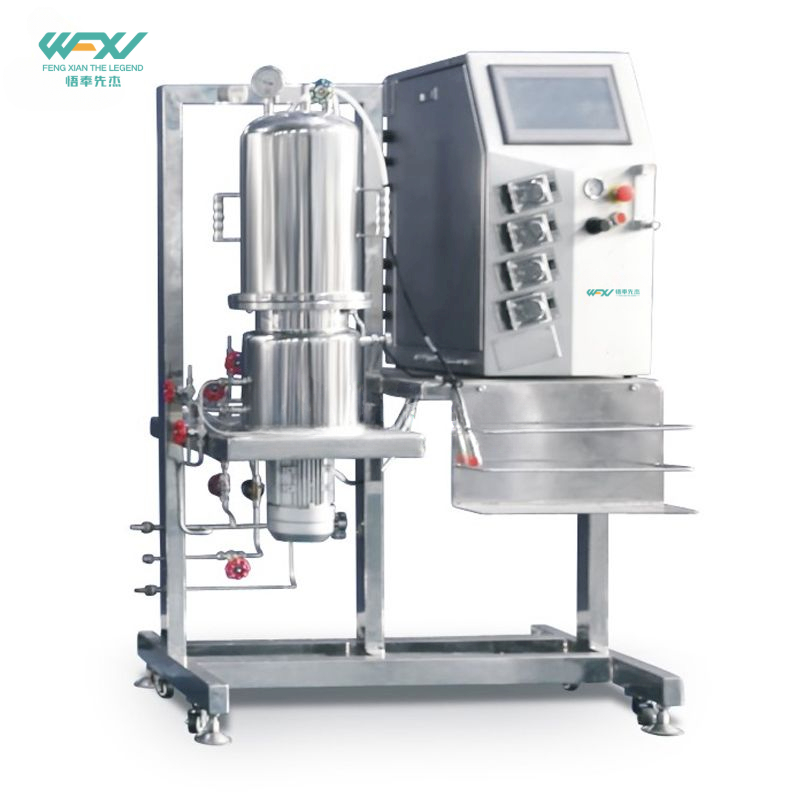

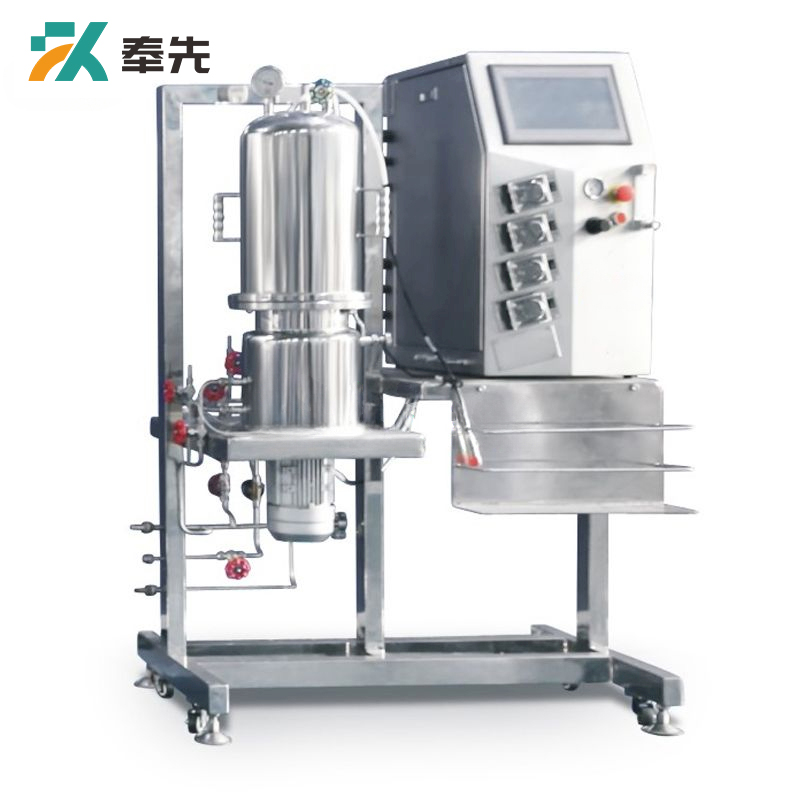

The LBR-XGCAV multifunctional glass biological fermentation system adopts a color touch screen to display all measured values and control parameters, which greatly facilitates the user's operation. 4 peristaltic pumps are installed on the front of the control box, which can replenish the fermenter with acid, alkali, defoamer and medium. Various parameters in fermentation such as pH, DO, temperature and rotational speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated on the fermentation system. The lower drive magnetic force is indirectly coupled with the mechanical stirring method, the structure is simple, and the operation is stable.
Full volume: 1/3/5/7/10/15/10/15L, stainless steel tank + part of borosilicate glass,
Diameter height ratio: 1:2~3; Liquid coefficient: 70%
Ventilation: Rotameter display, adjust the flow of gas according to process requirements
Fermentation pH control function: intelligent PID control, Mettler PH electrode;
Fermentation dissolved oxygen control function: intelligent PID control, METTLER DO electrode;
Temperature control: intelligent PID control, stainless steel jacket electric heating, water cooling
Sterilization: In-situ automatic program sterilization or in-situ manual sterilization are optional; Inoculation: Alcohol flame inoculation;
